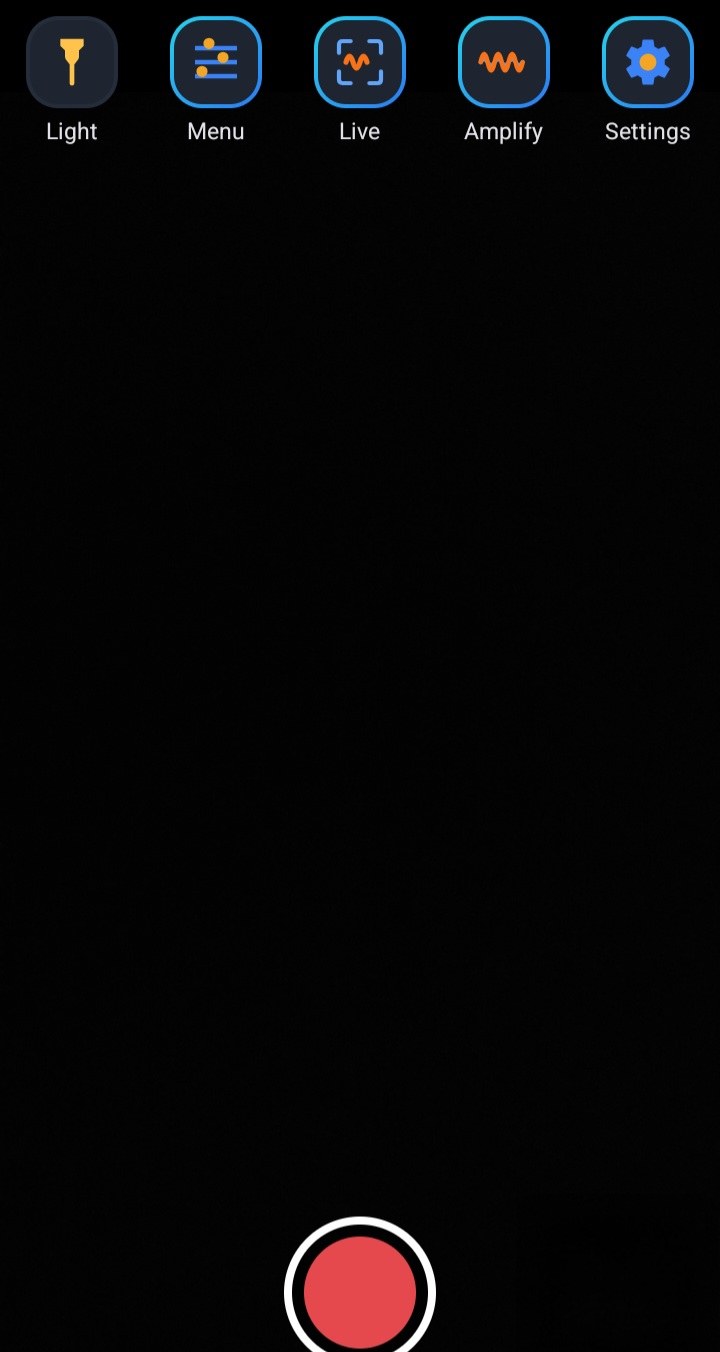

Capture screen
Record video of the region of interest on the device. Capture is performed on the phone so the file is available immediately for magnification or for later workstation analysis.
Product
Two products, one workflow
Vibra View is delivered as an Android application for capture and on-the-spot motion magnification, and a Windows application for analysis of recorded video. Use them independently or together.
Android
Capture and amplify
The Android application is intended for work at the asset. Video is captured on the phone, then motion is magnified on the amplify screen for quick, on-the-spot motion magnification in the field. Recorded video may also be used later on Windows.

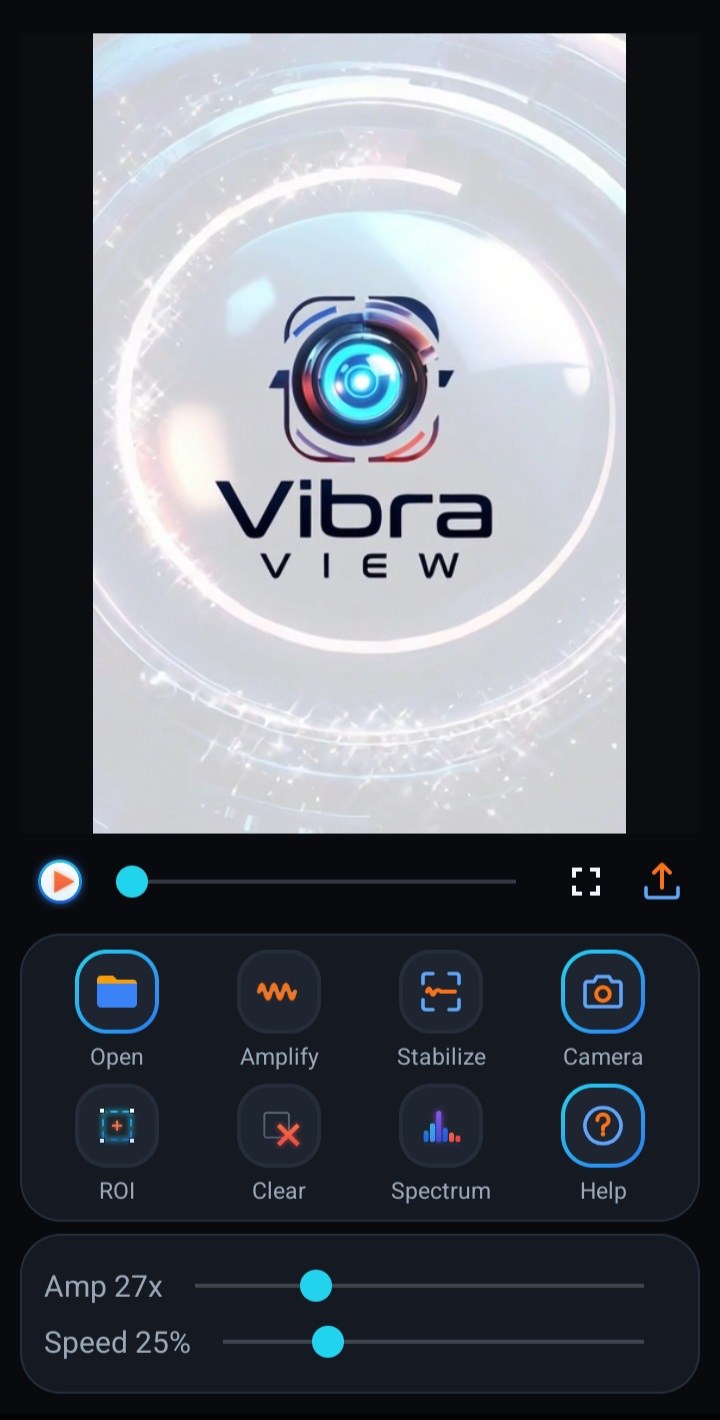

Amplify screen
After capture, the amplify screen magnifies motion so small vibration is visible. This is the field result: on-the-spot motion magnification without transferring a file first.
Capabilities
- Capture video on the phone
- On-the-spot motion magnification on the amplify screen
- Make tiny vibration visible in the field
- Retain recorded video for analysis on Windows
Intended use
Field inspection and first-look troubleshooting. Confirm that motion is present, identify where it is occurring, and keep the recording when a workstation analysis is required.
Windows
Analysis of recorded video
The Windows application analyzes a recorded video. Load a file, amplify motion so it is visible, measure displacement, and inspect frequency, spectrum, and waveform.
Capabilities
- Analysis of a recorded video
- Amplify motion so it is visible
- Measure displacement
- Frequency, spectrum, and waveform
Intended use
Workstation analysis after video has been recorded on Android or otherwise captured. Suitable for review, measurement, and documentation.
Used together
| Application | Role |
|---|---|
| Android | Capture screen and amplify screen — on-the-spot motion magnification in the field |
| Windows | Analysis of a recorded video — amplify motion so it is visible; displacement; frequency / spectrum / waveform |
| Together | Capture and magnify on Android; analyze the recorded video on Windows |
